Maker Faire 2025 Overview

I’m exhibiting at Maker Faire 2025! Here’s an overview of what I’m showing off along with links for everything. Consider this page a virtual flyer from my booth that you can refer back to whenever you want!

Vega 4x5 by Vegatype

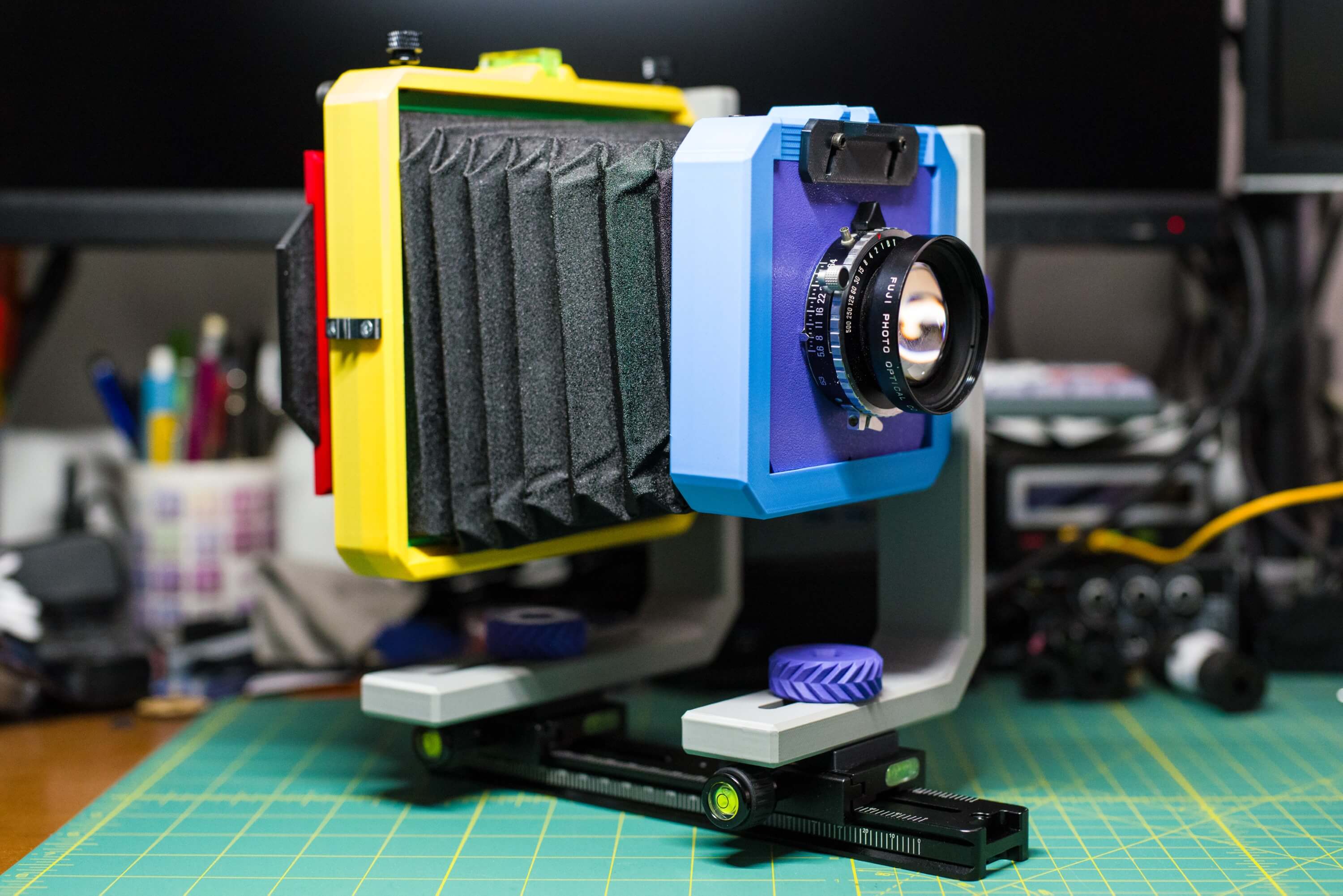

Vega 4x5 camera

This is a mostly 3D printed large format camera that captures images directly onto 4x5” photographic film or paper. It is also compatible with a wide variety of other film formats through the use of various different film holders and adapters. I’ve wanted a camera like this for a while, and 3D printing has opened the door for me to build it myself. If you’d like to read more about it, I’ve put together a blog post on the Vega 4x5.

Sample Photos

Black and white print of a charcoal grill sitting in the grass in front of two different styles of fence with some plants on the right side

Mamiya Press Lens Cone

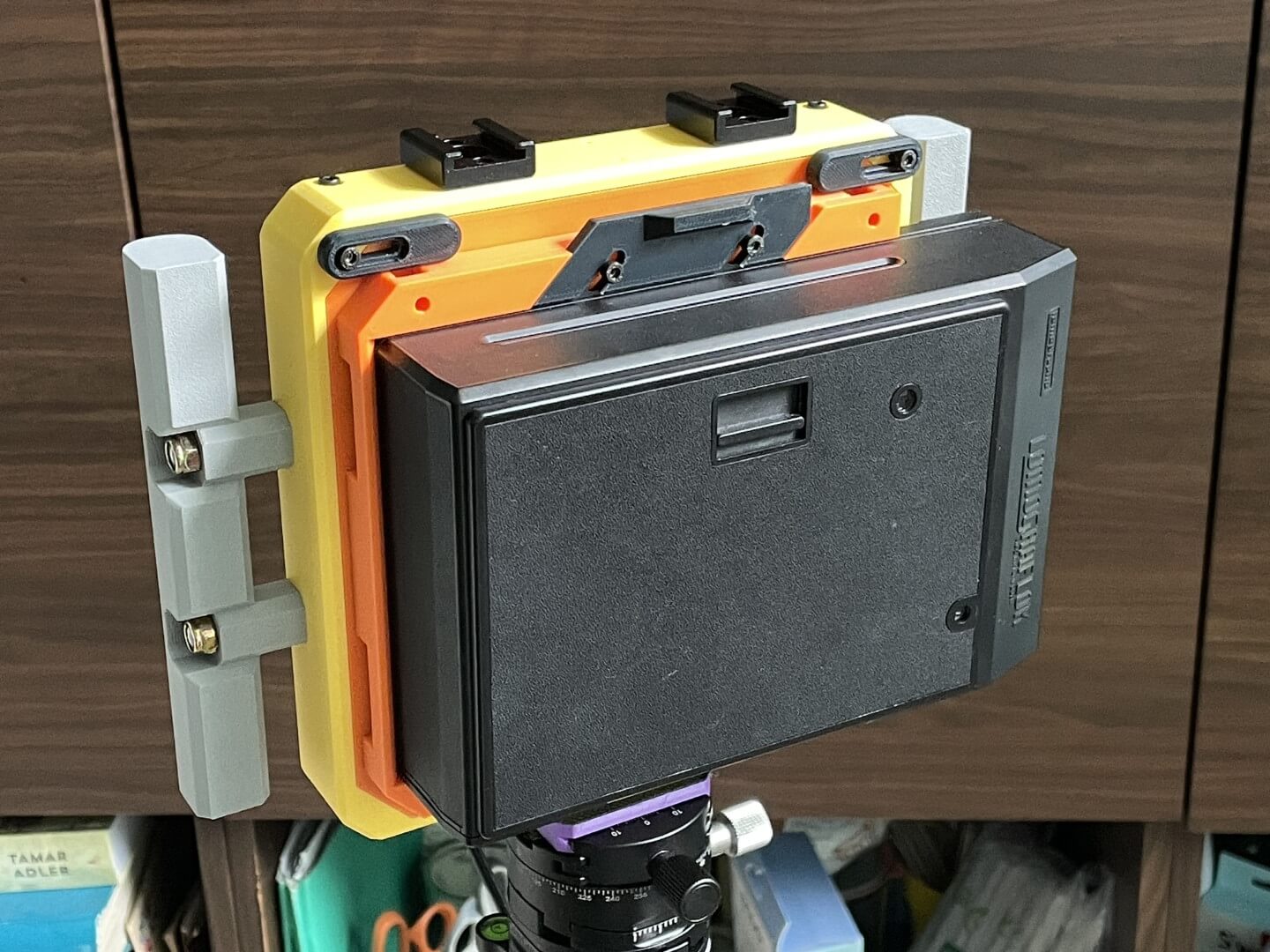

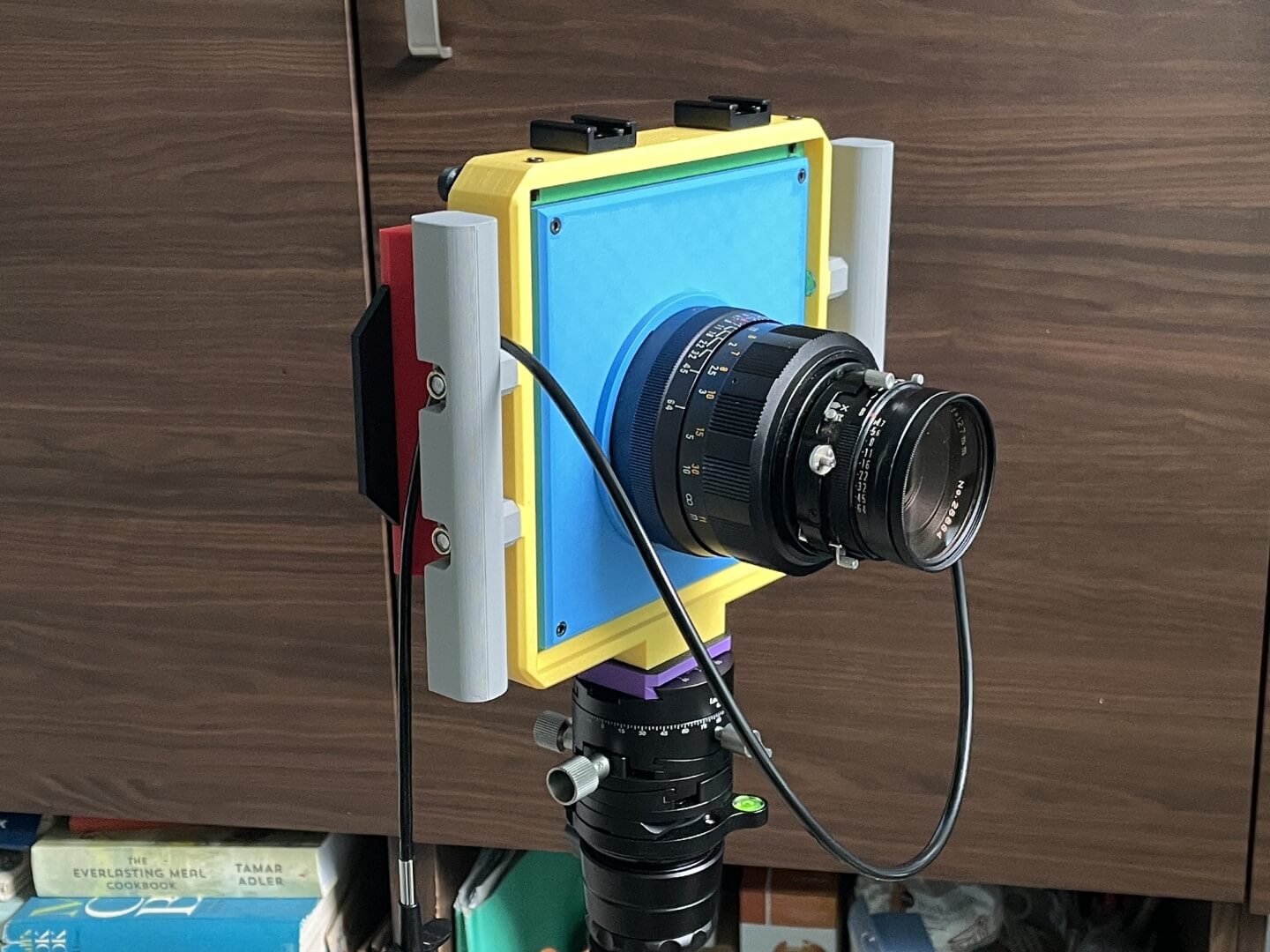

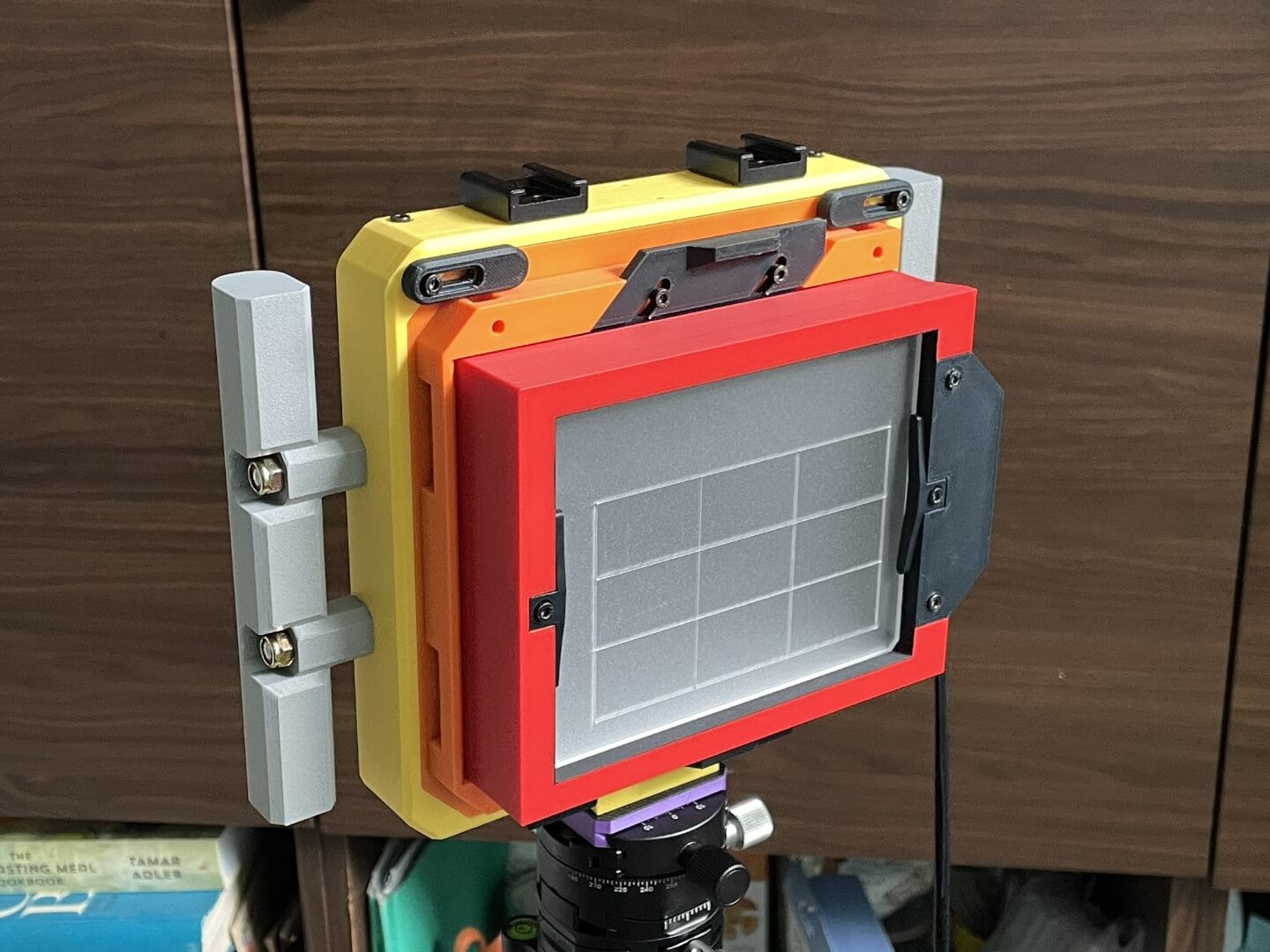

Vega 4x5 rear standard with a custom lens cone and a Mamiya Press 127mm lens attached. Front view. Vega 4x5 rear standard with ground glass holder mounted. Rear view. Vega 4x5 rear standard with Lomograflok back mounted. Rear view.

I wanted to continue to use my Mamiya Press lenses with the Lomograflok back and the Vega 4x5, so I designed a replacement for the entire bellows and front standard that accepts Mamiya Press lenses and positions them at the correct depth and shift for the Lomograflok back. I want to create another version that centers the lens and places it at the correct distance for a normal 4x5 focusing screen. That way, I can use them with Graflok-compatible 120 film backs.

Mamiya Press Vega 4x5 Lens Cone for Lomograflok on Printables

Sample Photos

Wide angle Instax Wide print with the Chewy Boba Orlando mural on the left, an alleyway in the middle, and a wall on the right Wide angle Instax Wide print of a courtyard with a wooden gazebo in the middle, surrounded by plants and the entrances to businesses Instax Wide print of a gazebo next to a trail in the woods

Brancopan by Cameradactyl

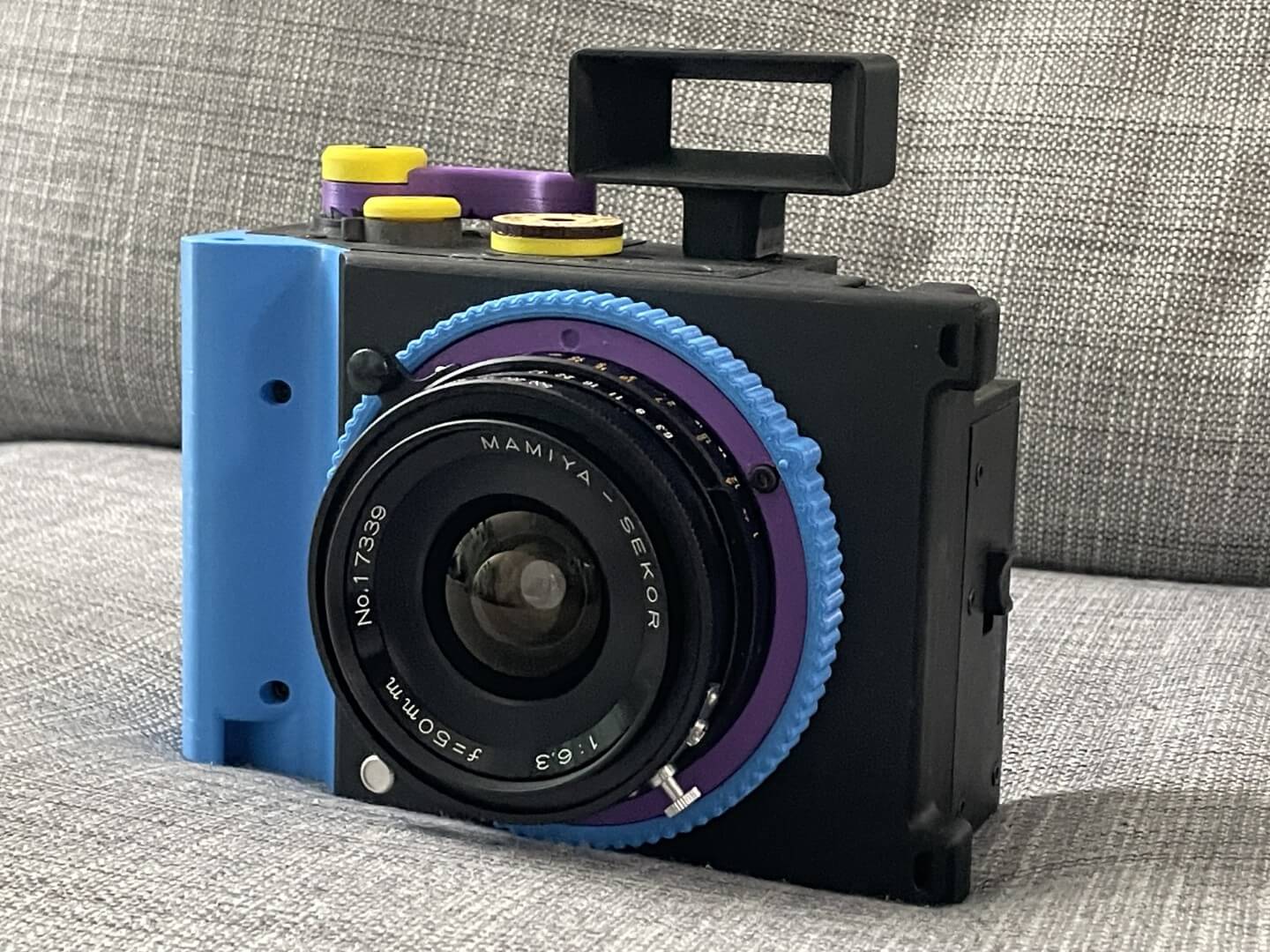

Brancopan camera, with a blocky appearance, printed in purple, yellow, cyan, and black, sitting on a couch with a Mamiya Press 50mm lens attached to it

The Brancopan is a panoramic camera that shoots 24x56mm images onto 35mm film. It uses lenses originally designed for the Mamiya Press camera system, and is fully 3D printed with the exception of some screws and one spring from a clicky pen. It even includes a film advance lever that automatically stops at the next frame!

Assembly took me approximately 20 hours of time over the span of a few weeks. Cameradactyl created a great assembly video that goes through all the steps in detail, including what parts to sand. He also provides print files for viewfinders for a wide variety of lens focal lengths. Would I recommend building one? I don’t know. It’s big, heavy, and conspicuous, but you can try it out for yourself at my Maker Faire booth!

Sample Photos

Panorama of the intersection of Mills and SR50, showing Chewy Boba, Pho 2 To Panorama of a "Mills 50" bike rack with Nu's Hair Styles in the background Panorama of the side of the Woof Gang Bakery, showing three groups of small, rectangular windows Panorama of the entrance to The Porch in Winter Park, FL

LigeroLG by SPRKPLG

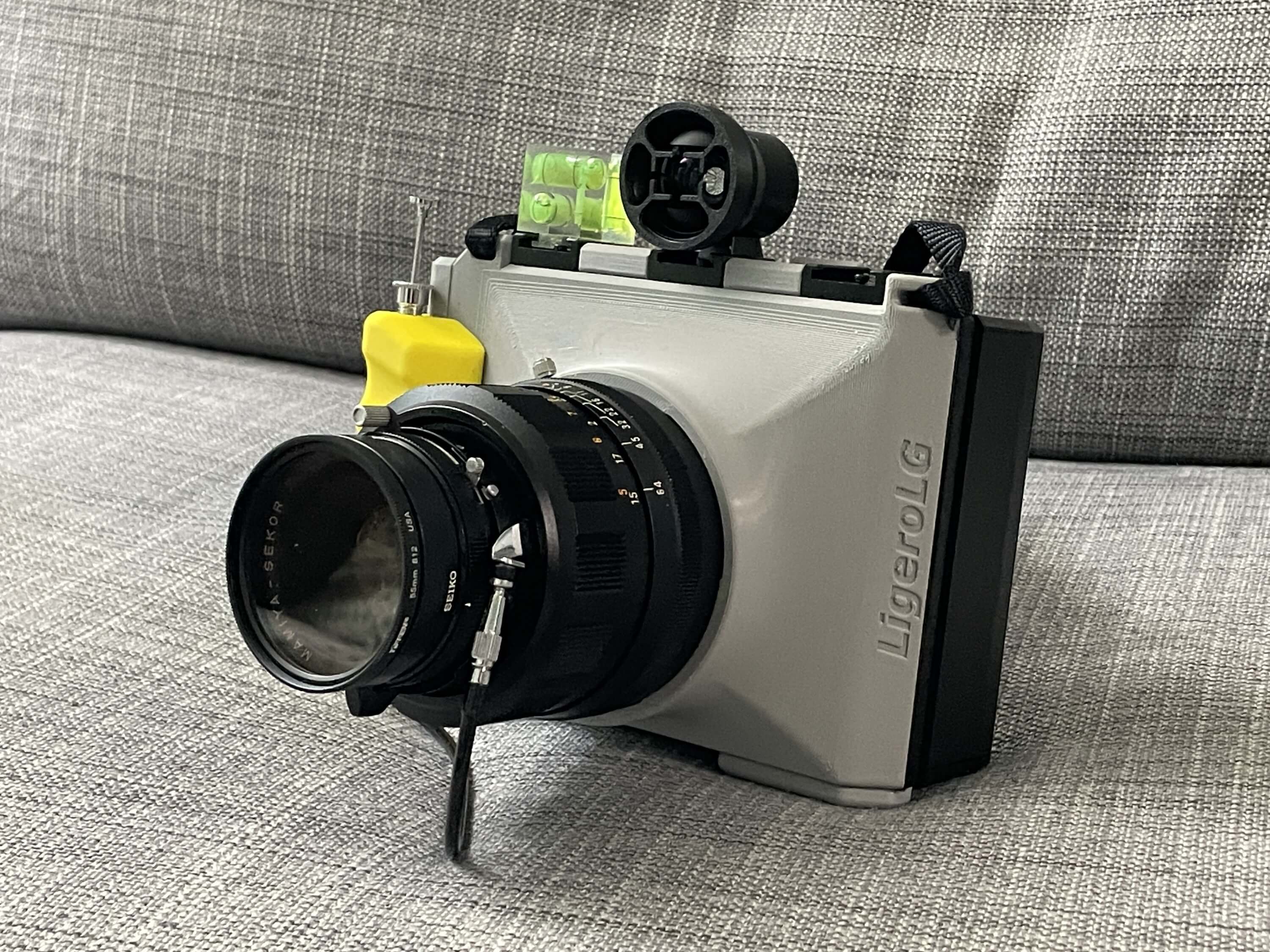

LigeroLG camera, printed in grey and yellow, attached to a Lomograflok back, with a viewfinder and flash attached to the top, sitting on a table

The LigeroLG was the original reason I purchased the Lomograflok back. It’s really a glorified lens cone, but it has all the hardware for mounting a Mamiya Press lens, Lomograflok back, cable release, viewfinder, flash, and whatever other accessories you like. I like to use the TTArtisan 21mm Viewfinder and Godox Lux Junior flash. In my opinion, it’s the ultimate portable Instax Wide camera.

Sample Images

Wide angle Instax Wide print of a bench next to a trail in a forest Instax Wide print of two adult men and one young boy looking at a 3D printer at Maker Faire 2024
